LED signalling (CAPTRON)
With time-tested LED technology
The high quality LED signals from CAPTRON are the perfect alternative to conventional signal lamps in terms of service life, robustness and reliability.
CAPTRON LED signals don't need maintenance and don't wear out because they are fully encased in epoxy resin. This makes them perfect for daily use and able to withstand tough environmental conditions and industrial influences like heat, cold, dirt, dust, and chemicals. Their service life can be up to 100,000 hours, which corresponds to 11 years of continuous use.
There are many design options, materials, LED colors, and installation methods available, making them suitable for various industries and purposes, including public and private transport, industrial plant, and building technology. Our standard LED signal units can be customized to meet specific customer needs, such as LED colors, colored outer rings, and symbols.

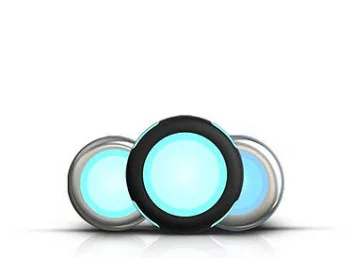

CANEO series10 Signal
LED signalling Signal lamps
The modern CAPTRON signal lights in the CANEO series10 Signal series are perfect for a wide range of applications, including industrial automation, robotics and building technology. They are IO-Link capable, but can also be installed pre-programmed without IO-Link in standard environments.
Particularly noteworthy is the CANEO series10 Signal Hygienic, which comes with FDA approval, EU Regulation 10/2011, DIN EN 1672-2 and EHEDG hygiene certification. Meets the highest standards in the food, pharmaceutical and medical sectors.
- Three housing variants available
- Ø 30-32,4 mm
- M12 plug or stranded wire connection available
- Water-resistant
CML1 Series
Multi LED signal lamps from CAPTRON light up in 7 different colors. The compact housings are available in polycarbonate, aluminium or stainless steel. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK08 and IP68K). They can either be bolted to a front panel or installed flush.
- Multi LED signal lamps
- LED colors: blue, white, yellow, red, green, violet, light blue
- Extremely robust and waterproof (IP69K)
- Hygienic variant available (stainless steel)
CTL1 Series
Triple LED signal lamps from CAPTRON light up in 3 different colors. The compact housings are available in polycarbonate, aluminium or stainless steel. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK08 and IP68K). They can either be bolted to a front panel or installed flush.
- Three different LED colors in two color combinations
- LED colors: blue, white and red / red, yellow and green
- Extremely robust and waterproof (IP69K)
- Hygienic variant available (stainless steel)
CDL1 Series
Duo LED signal lamps from CAPTRON light up in 2 different colors (green and red). The compact housings are available in polycarbonate, aluminium or stainless steel. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK08 and IP68K). They can either be bolted to a front panel or installed flush.
- Two-color LED
- LED colors: red and green
- Extremely robust and waterproof (IP69K)
- Hygienic variant available (stainless steel)
CSA5 Series
The LED signal display from CAPTRON can be backlit with various, bespoke texts or symbols in different LED colors. The CSA5 is designed for gluing to single and double-glazed glass.
There is no need to make a hole in the glass for installation and the button can easily be clipped into the fastening flange. We can also provide corner and angle mountings for the flexible positioning of the CSA5 on the glass. We manufacture the housing in glass fiber-reinforced polycarbonate.
The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK08 and IP68K). They require no maintenance and don't wear out, so they're perfect for everyday use and can withstand tough environmental conditions and industrial influences such as heat, cold, dirt, dust, and chemicals.
LED technology means a service life of up to 100,000 hours can be achieved which corresponds to 11 years of continuous operation.
- Signal Indicator
- Fonts and icons illuminated mappable
- Different colors available
CSL6 Series
The full area LED signal lamp from CAPTRON is illuminated with 96 bright LEDs in red and yellow. The CSL6 is designed for gluing to single and double-glazed glass.
There is no need to make a hole in the glass for installation and the button can easily be clipped into the fastening flange. We can also provide corner and angle mountings for the flexible positioning of the CSL6 on the glass. We manufacture the housing in polycarbonate. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK 08 and IP 68K).
They require no maintenance and don't wear out, so they're perfect for everyday use and can withstand tough environmental conditions and industrial influences such as heat, cold, dirt, dust, and chemicals.
LED technology means a service life of up to 100,000 hours can be achieved which corresponds to 11 years of continuous operation.
- Full-surface LED signal lamp
- Different colors available
