Smart Servos (Nanotec)

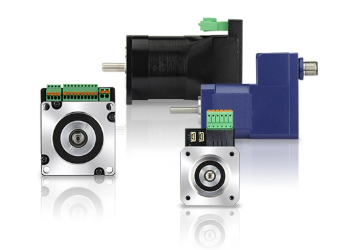

MOTORS WITH INTEGRATED CONTROLLER
For demanding applications with precise position, speed, and torque control, Nanotec offers brushless DC motors with integrated controller in three sizes. Both BLDC motors and stepper motors feature field-oriented control via the integrated encoder and differ only in their working points.
- Flange sizes 42 – 86 mm (NEMA 17 – NEMA 34)
- Excellent dynamic behavior through closed-loop control
- Simple programming with the Plug & Drive Studio
- Compact design and quick setup
- Also available with protection class IP65
- CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, USB
Nanotec also offers programmable motor controllers for BLDC and stepper motors on the same technical basis in many different versions and with a wide power range.
Our proven generation of N/O motors are ideal for simple designs and available only with RS485 and/or CANopen interface.
STEPPER MOTORS WITH CONTROLLER
Nanotec offers integrated stepper motors in three sizes and with a holding torque of up to 8.8 Nm. Due to their high torque at low speeds, closed-loop stepper motors are especially well-suited for direct drives.
- Precise position, speed and torque control
- Magnetic single-turn absolute encoder or battery-free multi-turn absolute encoder (PD4 E... M)
- Digital and analog inputs, digital outputs
- Integrated temperature monitoring to prevent overload
- Smooth running, no resonances
Matching high-torque planeatary gearboxes can be added via the configurator after selecting a motor.
Nanotec also offers programmable motor controllers for stepper motors in many different versions and with a wide power range.
BRUSHLESS DC MOTORS WITH CONTROLLER
Nanotec offers integrated BLDC motors in three different sizes and with a rated power of 105 – 534 W. Due to their excellent dynamic performance, these smart brushless DC servos are ideally suited for applications with fast acceleration, such as in medical engineering, automation, robotics or in special machine construction.
- Precise position, speed and torque control
- Magnetic single-turn absolute encoder
- Digital and analog inputs, digital outputs
- Integrated temperature monitoring to prevent overload
- Smooth running
- Long service life
Matching high-torque planetary gearboxes can be added via the configurator after selecting a motor.
Nanotec also offers programmable motor controllers for BLDC motors in many different versions and with a wide power range.
