200 Series (YTS)

Liquid flow rate: 1 to 120 l/min

Wetted body material options: PPG

Characteristics:

• 3/4" side port liquid connections
• Available in both threaded and flanged
• Polypropylene air motor (PPG)
• LOOPED C® spring air spool
• New high performance LOOPED C® Spool for increase reliability and longer parts life expectancy
• Ball check valves as standard
• 20mm pump

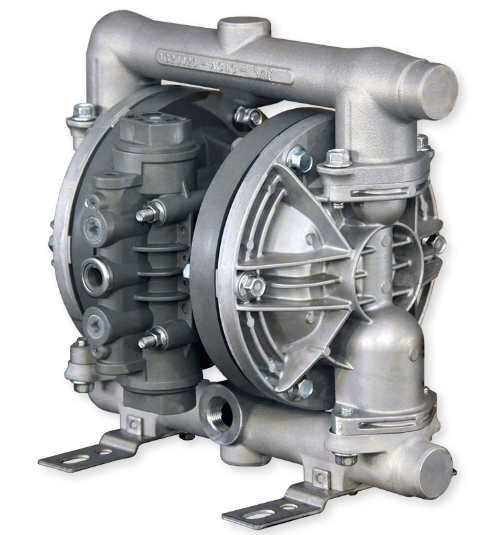

Liquid flow rate: 1 to 200 l/min

Wetted body material options: Aluminium & Stainless steel

Characteristics:

• Metallic pumps with 3/4" threaded centre port liquid connections
• Polypropylene air motor (PPG) or optional Metallic (-A) or Conductive Polypropylene (-PC) air motor
• LOOPED C® spring air spool
• New high performance LOOPED C® Spool for increase reliability and longer parts life expectancy
• High flow ball check valves (standard) with 6.5mm maximum solids capacity
• 20mm pump available in Aluminium & SUS with a PPG Plastic air motor as standard
• Air Eco Ring as standard
