HT Series (YTS)

Max liquid flow rate:

• 030HT: 8 l/min

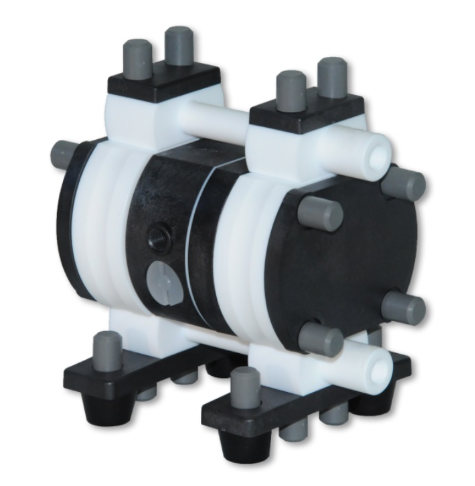

• 050HT: 11 l/min

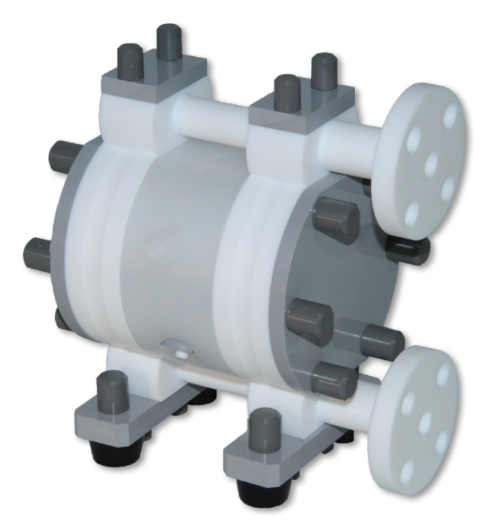

• 100HT: 27 l/min

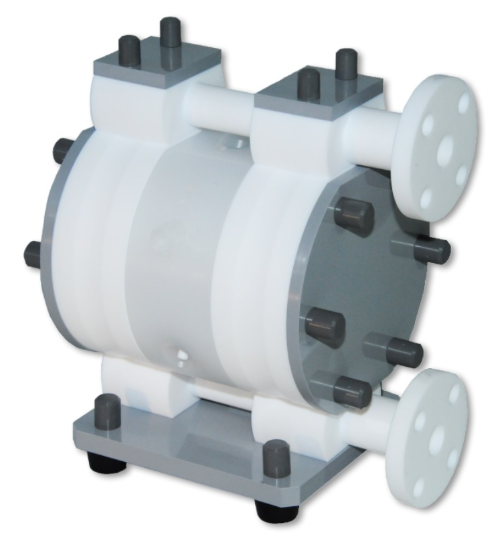

• 200HT: 54 l/min

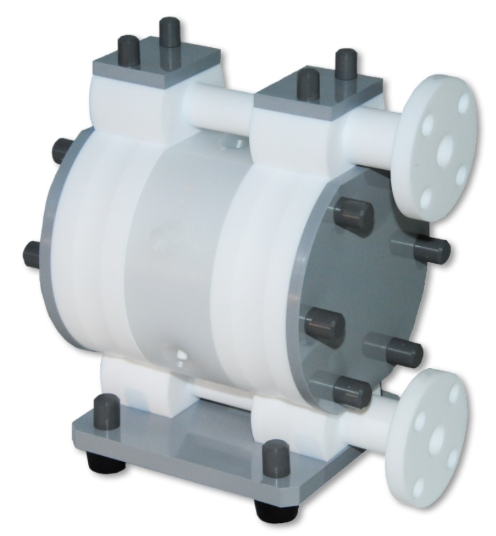

• 250HT: 64 l/min

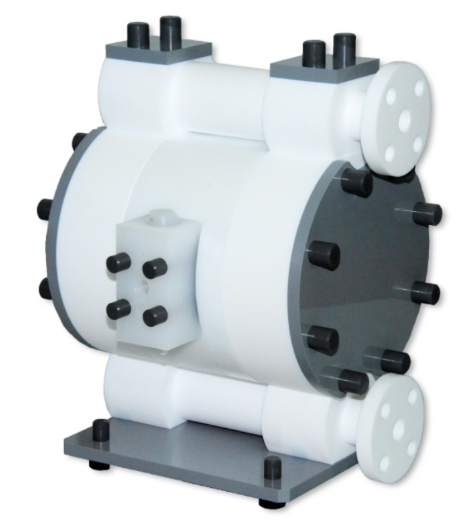

• 400HT: 95 l/min

Wetted body material options: High purity PTFE

Characteristics:

• 1/4" (030HT, 050HT), 3/8" (100HT), 3/4" (200HT) and 1" (250HT, 400HT) flange or threaded connections
• Manufactured specially for use in the Micro-Electronics and Semiconductor Industries
• Class 100 Clean Room Assembled Tested & Packed
• Ball and flat check valves
• New design with reduced air consumption
• Incorporating the new LOOPED C® air motor for improved reliability and extended parts life
• Non-lubricated air motor
• Drop-in, body dimensions and footprint
• Compact & robust
• Highly reliable operation and efficiency
• Fully bolted design and torque to reduce chance or leaks occurring
• Designed to insure low particle counts and reduced chance of metallic ion contamination

Common options:

• E-series
• Electric solenoid operated pumps
• Flaretek® connections & oversized flange connections available on some models
• Plastic or PTFE coated SUS torque plates
• Pump service kits
