Rotary hydraulic actuators (ECKART)
Applications:
- Excavating and drilling machines
- Mechanical tools
- Onshore and offshore service
- Vehicle construction
- Pharmaceutical Industry
- Food industry
- Etc.
ROTARY ACTUATOR E1
Setting the standadrd for low-pressure hydraulic systems
- Operating pressure up to 100 bar
- 6 different sizes of actuators with a torque output up to 2450 Nm
- Smallest installation dimensions
- Ultracompact and robust
- Wear resistant
- Effective end cushioning
- Adjustable drive shaft datum
ROTARY ACTUATOR E3
Effortless and durable
- Operating pressure up to 210 bar
- 5 different sizes of actuators with a torque output up to 3600 Nm
- Ultra compact
- Robust construction
- High bearing charge
- Double shaft-and piston-sealing (lip seal)
- Exact, almost free from backlash positioning
- Wear resistant
- Continuous shaft hole

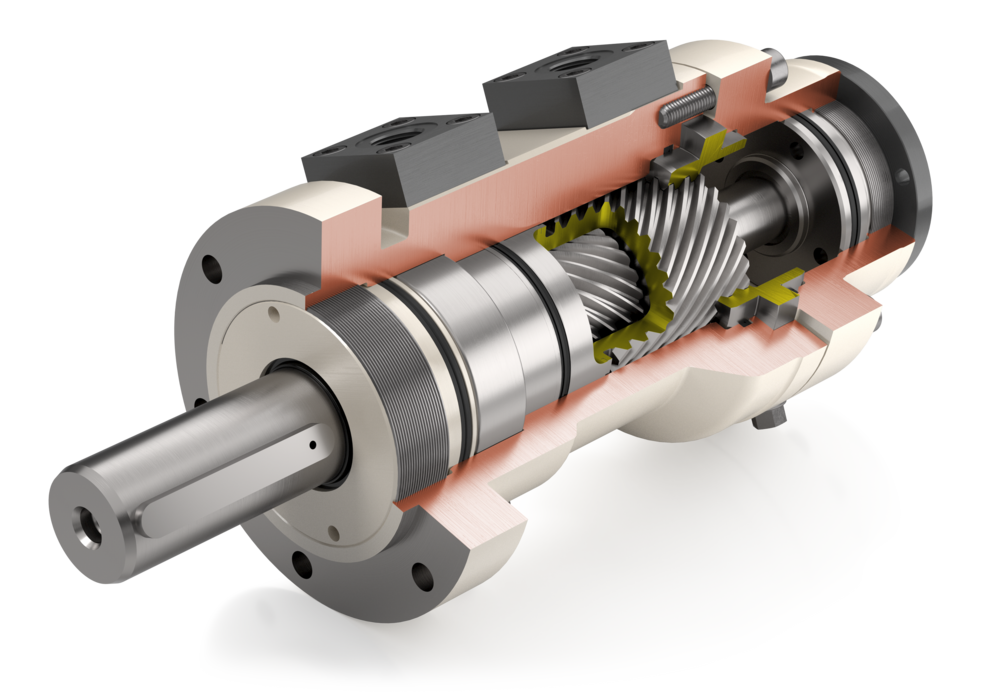

ROTARY ACTUATOR SM4
Extremely powerful and scalable
- Operating pressure up to 250 bar
- 13 different sizes of actuators with a torque output up to 250.000 Nm
- Compact und robust
- Wear resistant
- Efficient end cushioning
- Adjustable drive shaft datum
- Angle adjustment ± 5°
ROTARY-LINEAR ACTUATOR HSE4
Full flexibility in small space
- Operating pressure up to 100 bar
- 6 different sizes of actuators with a torque output up to 2050 Nm
- Compact und robust
- Wear resistant
- High efficient end cushioning
- Angle adjustment ± 5°
- Adjustable drive shaft datum
VALVE ACTUATOR HyRAV FLEX
Powerful, compact and safe
- Operating pressure up to 210 bar (higher on request)
- 14 different sizes of actuators with a torque output up to 250.000 Nm
- Slim and compact desin
- Durable against vibrations
- Easy installation and adjustment to each valve
- Robust against extreme environmental conditions
- Concentric design protects the valve and the spindle from damage
- No lubrication required, because all moving parts of the actuator are permanent in the oil bath
- ISO5211 or ANSI flange
- ATEX and SIL
