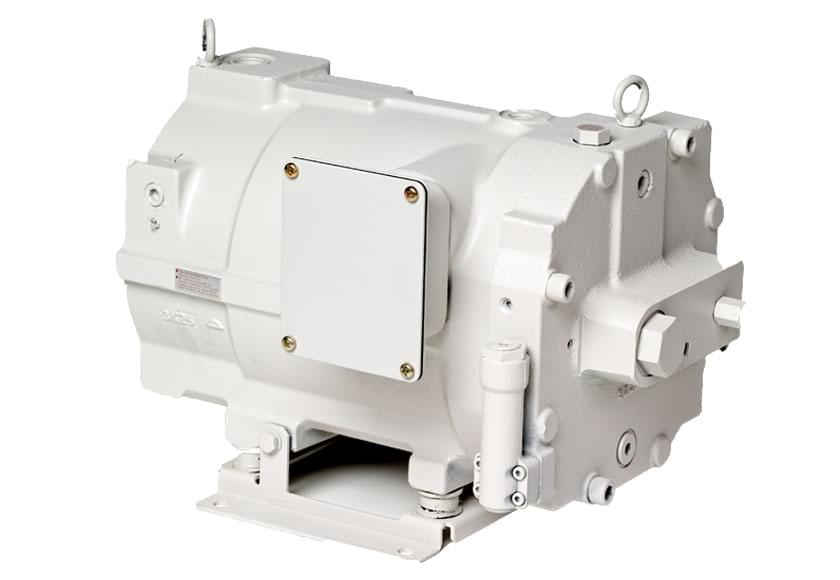

Electric motor with integrated axial piston pump J-RP (DAIKIN)

Variable Displacement Pump Integrated in a 415 Volt - 50hz Electric Motor. Vertical mounted for easy access.

Special Characteristics

• Reduced installation expenditure, no coupling and mounting bracket.
• Reduced installation space (to 40%)
• Smaller oil tank
• Lower weight.
• No external leakage.
• Lower Noise Level (-10 to -15 db(A) )
• Reduced pulsation. to 50%
• Lower Temperature Level.

Displacement

• 8cc with 0.75kw Motor.
• 15cc with 1.5kw - 2.2kw
• 23cc with 2.2kw - 3.7kw
• 38cc with 3.7kw - 5.5kw

Pressure Rating

• From 15 bar up to 210 bar.

Special Voltage

• RP - Also available in 200volt - 50hz AC.horizontal mounted.
