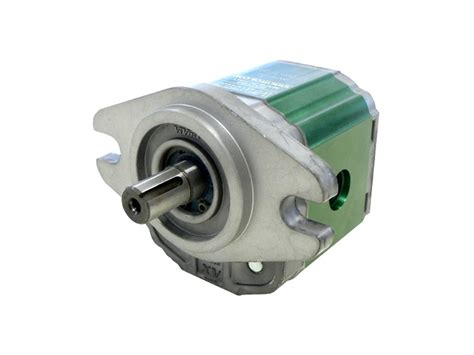

Reversible pumps (VIVOIL)
Reversible hydraulic pumps in aluminium, and with external gears. Some pumps in this category are also available with cast iron flanges.
They are used for some special applications, and their rotation verse is alternately clockwise and counterclockwise. Therefore, if you are looking for a pump with clockwise or counterclockwise rotation verse to be reversed according to your needs, we recommend our unidirectional hydraulic pumps, whose rotation verse can be changed without adding any components.
The displacement of the reversible pumps varies between 0.16 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm, the maximum pressures reach 320 bar.
Depending on the type, our reversible pumps can have:
- Integrated outboard bearings
- High-Pressure shaft seal
GROUP 0
Reversible hydraulic pumps in aluminium, and with external gears, of size group 0. The rotation verse is alternately clockwise and counterclockwise. The performances achieved are: displacement 0,16 cm3/rev-2,28 cm3/rev, rotation speed up to 9000 rpm, maximum pressures up to 280 bar.
Depending on the product, the options available are:
- Viton
- Single inlet
- Internal drain
GROUP 1
Reversible hydraulic pumps in aluminium, and with external gears, of size group 1. The rotation verse is alternately clockwise and counterclockwise. The performances achieved are: displacement 0.91 cm3/rev – 9.88 cm3/rev, rotation speed up to 6000 rpm, maximum pressures up to 300 bar.
Depending on the product, the options available are:
- Viton
- Shaft seal with metal support washer for back pressure up to 6 bar
- Internal drain
GROUP 2
Reversible hydraulic pumps in aluminium, and with external gears, of size group 2. Also available with cast iron flanges. The rotation verse is alternately clockwise and counterclockwise. The performances achieved are: displacement 4.2 cm3/rev – 39.6 cm3/rev, rotation speed up to 3500 rpm, maximum pressures up to 300 bar.
Depending on the product, the options available are:
- Viton
- Shaft seal
- High-Pressure shaft seal
- Integrated outboard bearings
- Internal drain
GROUP 3
Reversible hydraulic pumps in aluminium, and with external gears, of size group 3. The rotation verse is alternately clockwise and counterclockwise. The performances achieved are: displacement 14.89 cm3/rev – 86.87 cm3/rev, rotation speed up to 3000 rpm, maximum pressures up to 320 bar.
Depending on the product, the options available are:
- Viton
- Shaft seal
- High-Pressure shaft seal
- Internal drain
