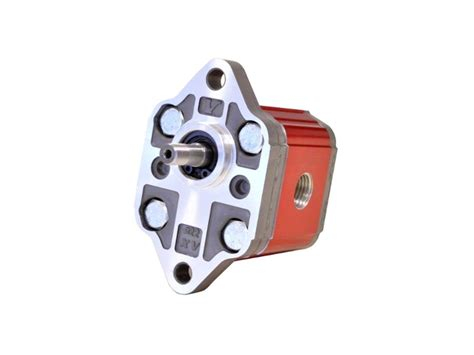

Unidirectional pumps (VIVOIL)
Unidirectional hydraulic pumps in aluminium, and with external gears.
Some pumps in this category are also available with cast iron flanges.
The rotation verse is clockwise or counterclockwise, and you can reverse it without adding any components, so you can optimize storage space and adapt the pump to your needs.
The displacement of these products varies between 0.16 cm3/rev and 86.87 cm3/rev, the rotation speed reaches up to 9000 rpm and the maximum pressures reach 320 bar.
Depending on the type, our unidirectional hydraulic pumps can have:
- Integrated outboard bearings
- Anti-cavitation valve
- Maximum pressure relief valves
- Priority valves
- Bypass electric valves
- High-Pressure shaft seal
GROUP 0
Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 0. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 0,16 cm3/rev-2,28 cm3/rev, rotation speed up to 9000 rpm, maximum pressures up to 280 bar.
Depending on the product, the options available are:
- Viton
- Maximum pressure valve
- Double shaft
GROUP 1
Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 1. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement from 0.91 cm3/rev to 9.88 cm3/rev, rotation speed up to 6000 rpm, maximum pressures up to 300 bar.
Depending on the product, the options available are:
- Viton
- Maximum pressure valve
- Double shaft
- Shaft seal
GROUP 2
Unidirectional hydraulic pumps with external gears of size group 2. All pumps of this group are available with both aluminium and cast iron flanges. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 4.2 cm3/rev – 39.6 cm3/rev, rotation speed up to 3500 rpm, maximum pressures up to 300 bar (310 bar in the cast iron version).
Depending on the product, the options available are:
- Viton
- Maximum pressure valve
- Double shaft
- Shaft seal with metal support washer
- High-Pressure shaft seal
- Integrated outboard bearings
GROUP 3
Unidirectional hydraulic pumps in aluminium, and with external gears, of size group 3. Some pieces are available with cast iron flanges. The rotation verse is clockwise or counterclockwise. The performances achieved are: displacement 14.89 cm3/rev – 86.87 cm3/rev, rotation speed up to 3000 rpm, maximum pressures up to 320 bar.
Depending on the product, the options available are:
- Viton
- Maximum pressure valve
- Double shaft
- Shaft seal
- High-Pressure shaft seal
