Slide units (SUHNER)

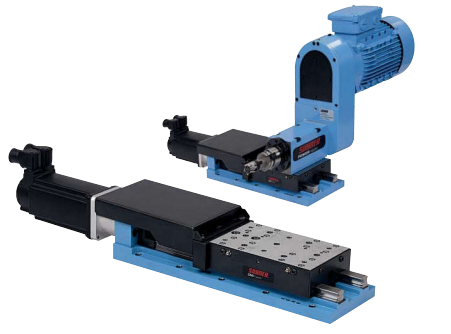

Slide Units (UA15/35 with BEX15/35)

The SUHNER POWERmaster slide assembly program consists of 2 basic designs with product designations UA 15 and UA35.

The 2 machining units, type BEX15 and BEX 35, can be used in combination with these slide assemblies.

Each size of slide assemblies is available in the various standard feed versions.

All slide units include a screw and nut assembly for total depth adjustment.

Remark: direct drive with digital AC servomotor (see CNCmaster - UA…CNC).

The machining spindles type BEX 15 and BEX 35 are equipped with high precision bearings for spindle concentricity of 0.01 mm.

Variable spindle speed combinations with changeable push-on pulleys.
