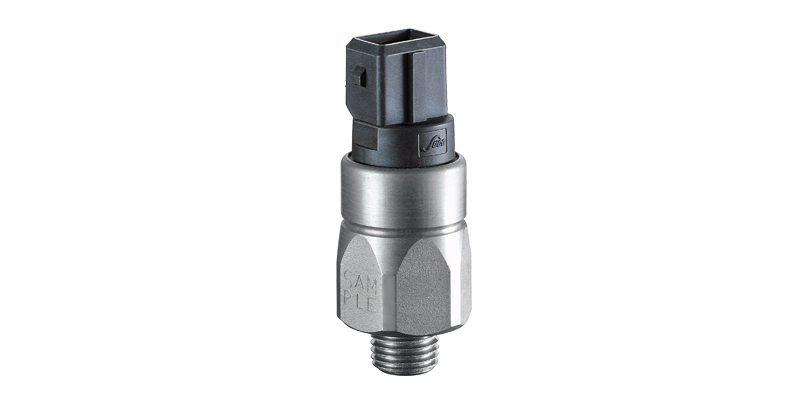

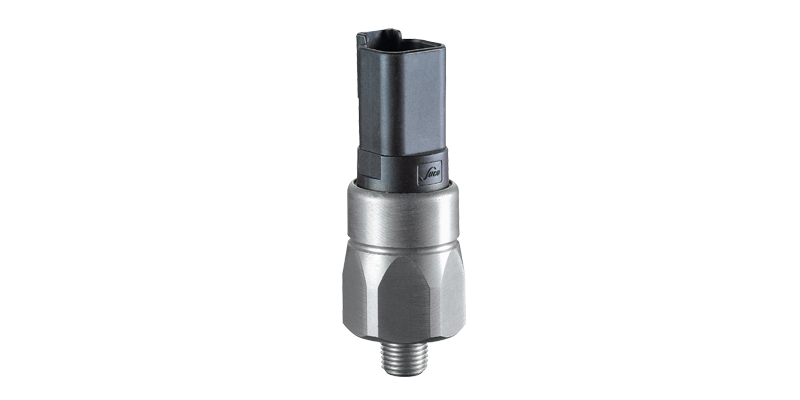

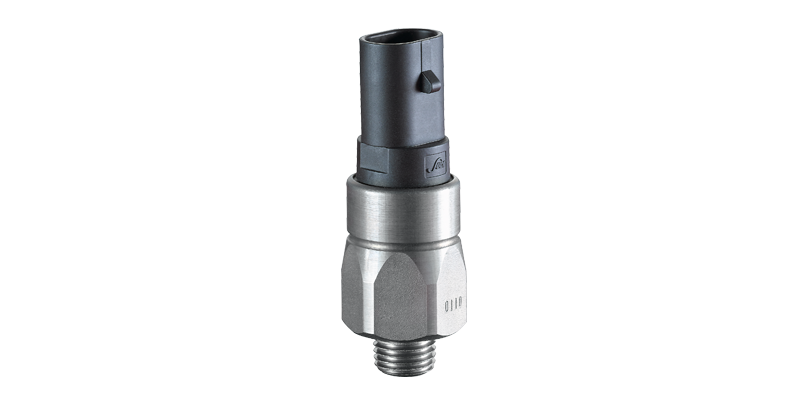

Pressure switch hex 24 PLUS (SUCO)
Piston pressure switch / Diaphragm pressure switch, normally open or normally closed, maximum voltage 42 V, with intelligent additional functions such as:
- Diagnostics function (fail-safe) with short-circuit and cable break detection
- Overvoltage protection for prolonging the contact service life under conditions of inductive load and long connection length cables
- Active reduction of EMC emissions
- Temperature-controlled switching function (e.g. cold start, i.e. switching function does not become active until from a certain temperature)
- Display of the switching status with LED
- Overload protection with self-resetting electrical fuse
- High protection class IP67 and IP69K
- Large selection of electrical plug-in types for quick installation and reliable connection
- Switching points can be set on site with adjusting screw in the connector
