Couplings (RINGFEDER)
ELASTOMER JAW COUPLINGS
![gerwah elastomercoupling 840x580](/fileadmin/_processed_/8/c/csm_gerwah_elastomercoupling_840x580_05d9098348.jpg)
GWE SERIES
- Backlash-free
- Vibration damping
- Plug-in mounting
- Compensation of shaft-misalignment
- Torque: 0,5-1.920 Nm
- Optional stainless steel
- Temperature range: up to approx. +120 °C
TNM SERIES
- Torsionally flexible
- Damping of torsional vibrations
- Torque: 27-97.500 Nm
- Easy replacement of elastomers
TNS SERIES
- Torsionally flexible
- Damping of torsional vibrations
- Torque: 27-40.000 Nm
- Easy replacement of elastomers
- Temperature range: up to +120 °C
TNB SERIES
- Torsionally flexible
- Damping of torsional vibrations
- Torque: 3.000-780.000 Nm
- Easy replacement of elastomers

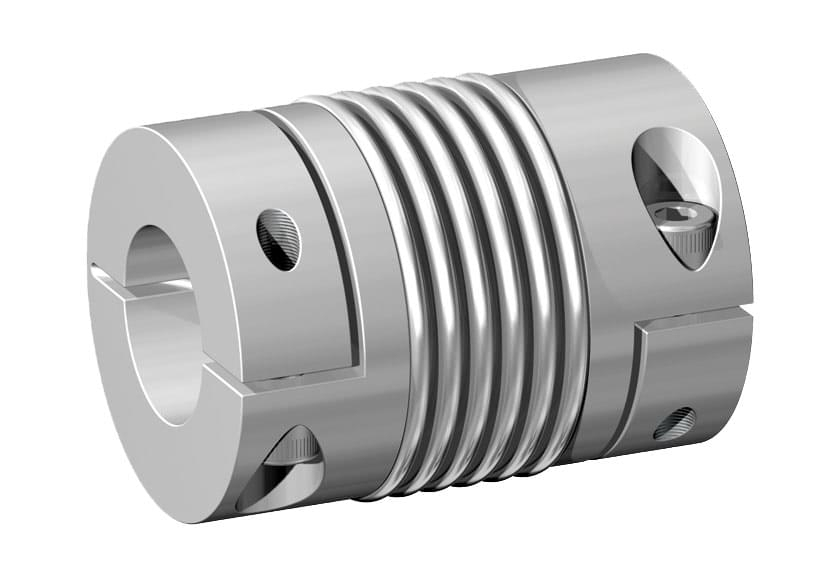

METAL BELLOWS COUPLINGS
![gerwah bellowscoupling 840x580](/fileadmin/_processed_/f/8/csm_gerwah_bellowscoupling_840x580_b8c14cafee.jpg)
- Backlash-free
- Low moment of inertia
- Compensation of shaft-misalignment
- Torque: 0,4-5.000 Nm
- Optional stainless steel
STEEL DISC COUPLINGS
![](/fileadmin/_processed_/3/4/csm_steel_disc_coupling_ringfeder_51ecb3d86d.png)
- High torsional stiffness
- High transmissible torques
- Temperature range: up to approx. +240 °C
- Maintenance-free operation
GEAR COUPLINGS
![](/fileadmin/_processed_/9/1/csm_gear_coupling_9a6083a4ed.jpg)
- Torsionally rigid
- Compensation of axial, radial and angular misalignment
- Torque: up to 390.000 Nm
- High power density, small installation space
- Long maintenance intervals
BARREL COUPLINGS
![](/fileadmin/product_data/ringfeder/images/Barrel-Coupling.png)
- Compensation of axial and angular misalignment
- Wear indication
- Torque: up to 1.390.000 Nm
- High torques with simultaneous absorption of radial forces
FLANGE COUPLINGS
![](/fileadmin/_processed_/f/2/csm_RfN_5571_Flange_Coupling-300x300_a44f318ff0.png)
- Direct power transmission between shaft and flange
- High level of true running accuracy
- Easy positioning of the flanges on the shaft ends
- Torque: 6.900-2.200.000 Nm
TORSIONAL HIGHFLEX COUPLINGS
- Dynamic adjustable stiffness: elastic to highly elastic transmission capability
- Torque: 144-68.000 Nm
- Speed: 1.200-4.750 rpm
- Maintenance-free operation
- Temperature range: -50 °C to +130 °C
