Angular grippers (JRT)
AF03 SERIES
- Angular type by link lever driving unit
- Extensive utility in general structure
- Magnetic sensor is available for open-close sensing
- Sensor is not available at Normally Open type, Normally Close type

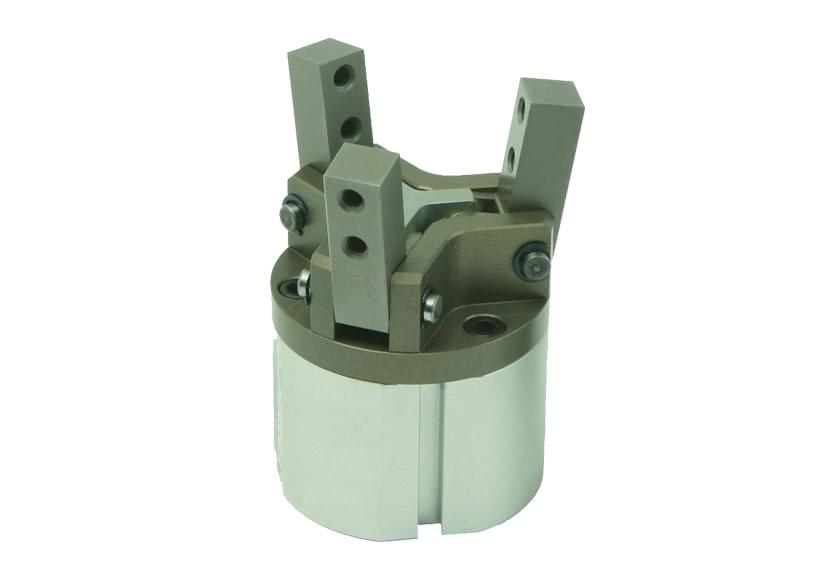

AF06 SERIES
- Angular type by link lever driving unit
- Suitable to grip for cylindrical & global work piece
- Magnetic sensor is available for open-close sensing
AF17 SERIES
- Angular type by Rack & Pinion driving unit
- Allow to grip the work piece by open-close range 180° without any interference
- Magnetic sensor is available for open-close sensing
AF19 SERIES
- Angular type by cam & roller driving unit
- Suitable to grip for small electronic work piece
- Quick responsibility by normally open type
- Magnetic sensor is not available

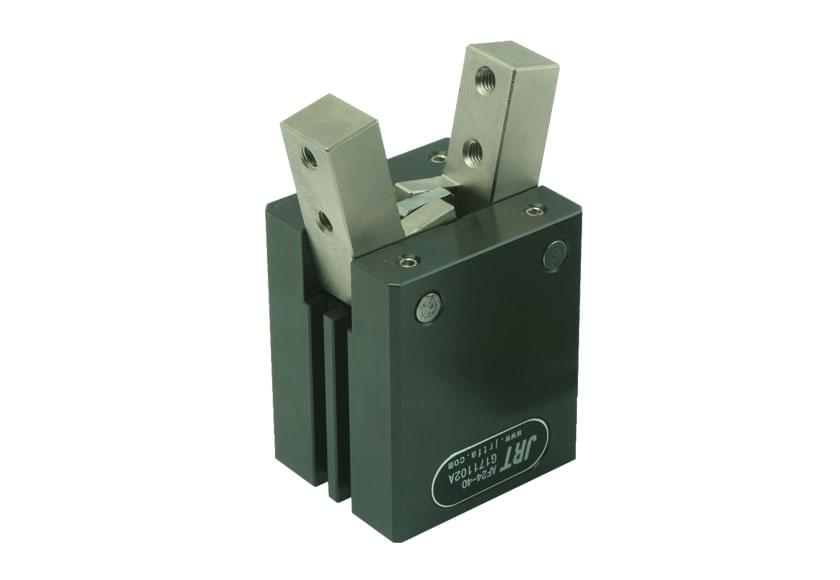

AF24 SERIES
- Angular type by link lever driving unit
- Mounting possible from 3 sides by square type body
- Magnetic sensor is available for open-close sensing

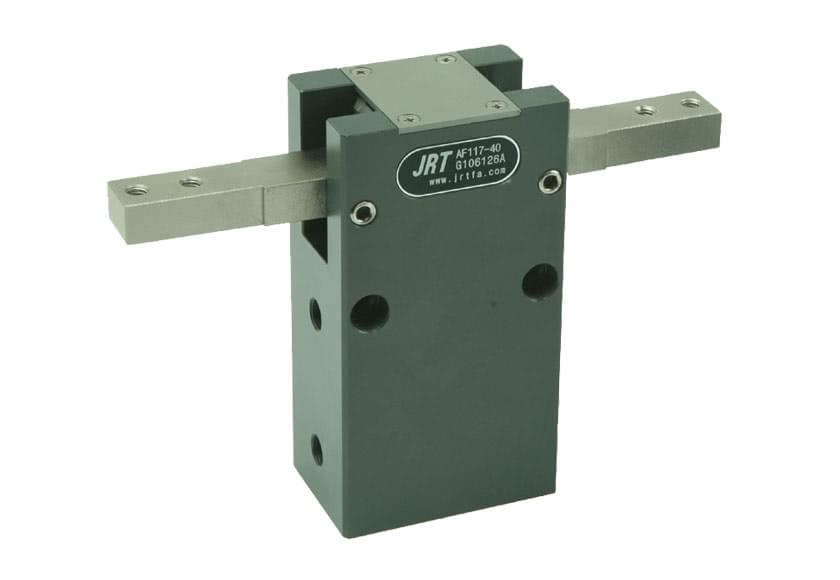

AF117 SERIES
- Wide angular type by crank lever driving unit
- Allow to grip the work piece by open-close range 180° without any interference
- Wide and various selections possible by various size
- Magnetic sensor is available for open-close sensing
