Parallel grippers (CKD)
LSH Series
![](/fileadmin/_processed_/8/0/csm_lsh_ckd_f624b8fdf8.jpg)
Linear slide hand. Double acting.
Operating stroke lenght: 4, 6, 10, 14 mm.

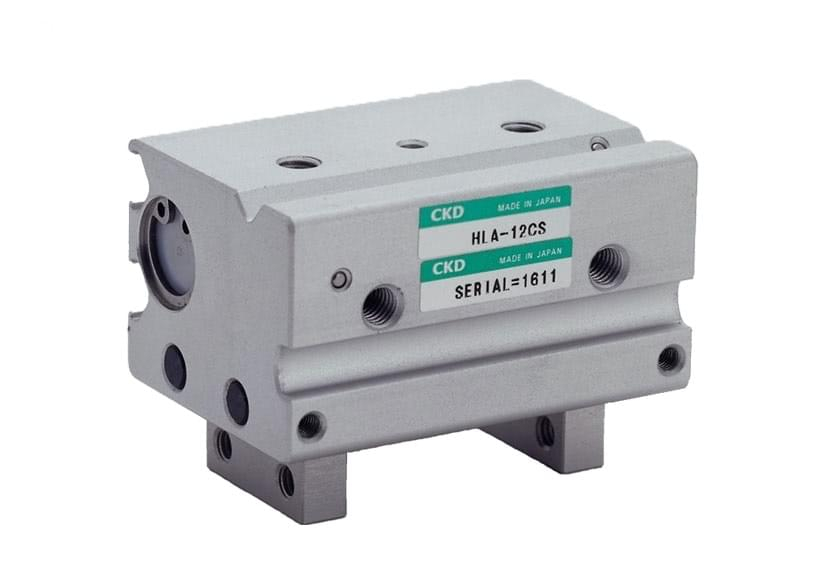

HLA, HLB Series
![pince parallèle CKD série HLA/HLB image pince parallèle BIBUS série HLA/HLB image](/fileadmin/_processed_/b/f/csm_ckd_series-hla_840x580_8ba46017aa.jpg)
Thin parallel hand (bush guide/ bearing guide), double acting.
Operational stroke length:
HLA 15, 20, 25mm
HLB 13, 18, 23mm
HEP Series
![pince parallèle CKD série HEP image pince parallèle BIBUS série HEP image](/fileadmin/_processed_/8/c/csm_ckd_series_hep_840x580_56e16a1456.jpg)
Gripping power that functions to open & closed directions with jaw length at supply pressure 0.3, 0.5 and 0.7 MPa.
- Standard sizes: 3.5CS, 4CS, 5CS, 6CS & 7CS
- Ambient temperature: 5 to 60 ºC
- Operation stroke length: Standard 24, 36, 40, 50 & 60
- Reciprocating capacity: 17.5, 65.0, 115.6, 236 & 450
- Product weight: 1.2, 3.2, 4.7, 7.6 & 11.7 kg
HLC Series
![pince parallèle CKD série HLC image pince parallèle BIBUS série HLC image](/fileadmin/_processed_/5/5/csm_ckd_series_hlc_840x580_1f35983b82.jpg)
Thin long stroke parallel hand, double acting
Operation stroke length:
Standard 40, 50, 60 and 70
Long stroke 80, 100, 120 and 140
