Parallel grippers (JRT)
AF02 SERIES
![jrt series af02 840x580](/fileadmin/_processed_/f/0/csm_jrt_series_af02_840x580_119ac23f3d.jpg)
- Rack & pinion type
- High gripping forces by the structure of synchronized dual piston
- Magnetic sensor is available for open-close sensing
AF04P SERIES
![JRT series AF04P parallel gripper JRT series AF04P parallel gripper (image 840x580px)](/fileadmin/_processed_/2/6/csm_jrt_series_af04p_840x580_a6e38c166a.jpg)
- Magnetic sensor is available for open-close sensing
- Suitable to grip a small and light work piece
- Mounting possible from 3 sides
- Small and slim body allows parallel mounting of many grippers
AF10 SERIES
![JRT series AF10 parallel gripper JRT series AF10 parallel gripper (image 840x580px)](/fileadmin/_processed_/3/3/csm_jrt_series_af10_840x580_effda86132.jpg)
- Magnetic sensor is available for open-close sensing
- Suitable to grip a small and light work piece
- Mounting possible from 3 sides
- Small and slim body allows parallel mounting of many grippers

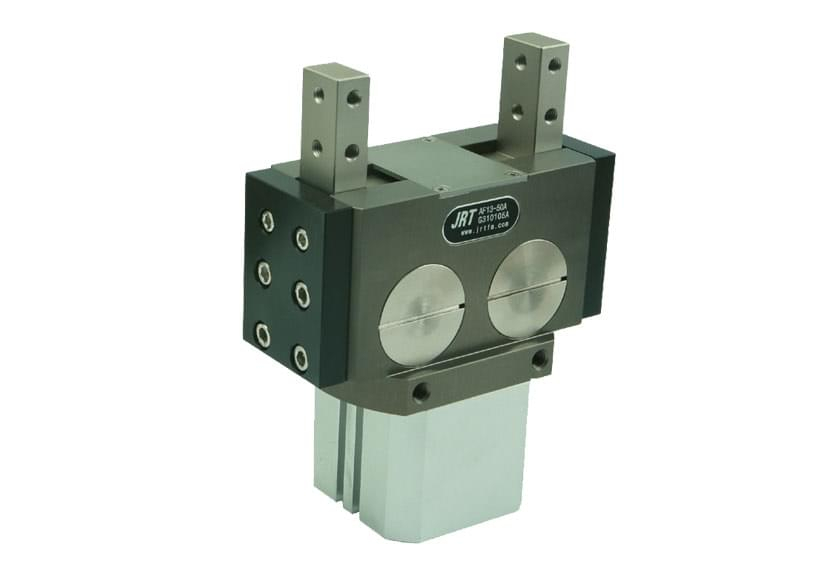

AF13 SERIES
![jrt series af13 840x580](/fileadmin/_processed_/9/4/csm_jrt_series_af13_840x580_bfde8be9b0.jpg)
- Rack & Pinion type (AF13-20 is Link & Lever type)
- High repeatability by sliding of guide rod
- Wide and various selections possible by various size
- Mounting possible from 3 sides
- Magnetic sensor is available for open-close sensing
AF13C SERIES
![JRT series AF13C parallel gripper JRT series AF13C parallel gripper (image 840x580px)](/fileadmin/_processed_/b/c/csm_jrt_series_af13c_840x580_d200b976b2.jpg)
- Rack & Pinion type (AF13C-20 is Link & Lever type)
- High repeatability by guide rod sliding
- Wide and various selections possible by various size
- Mounting possible from 3 sides
- Magnetic sensor is available for open-close sensing
- AF13+ dustproof cover type
AF14 SERIES
![jrt series af14 840x580](/fileadmin/_processed_/0/0/csm_jrt_series_af14_840x580_d9fec76e16.jpg)
- Roller way & Roller type
- High precision & strength structure
- Easy to mount many grippers (compact body)
- Magnetic sensor is available for open-close sensing

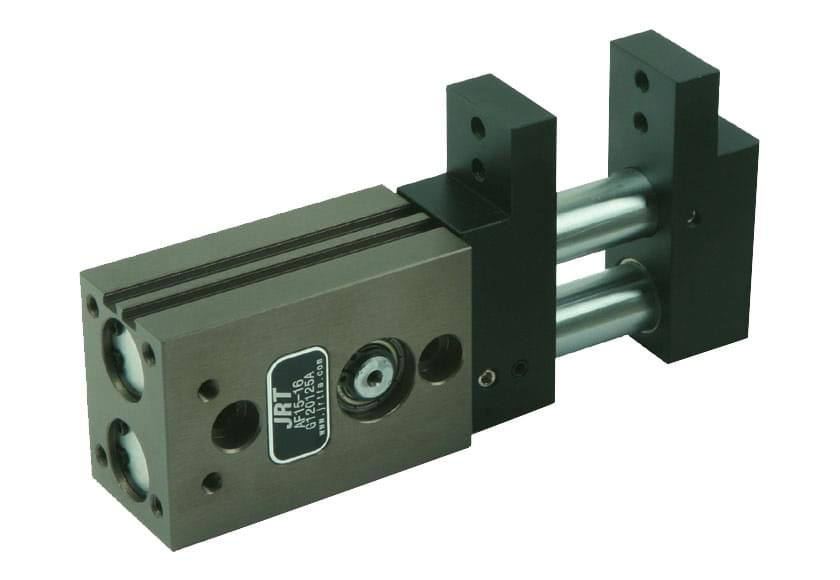

AF15 SERIES
![jrt series af15 840x580](/fileadmin/_processed_/7/2/csm_jrt_series_af15_840x580_b157a53e50.jpg)
- Rack & pinion type
- Jaw is located on one side of gripper body
- Suitable for gripping system of moving the rotation
- Magnetic sensor is available for open-close sensing
AF28D SERIES
![jrt series af28d 840x580](/fileadmin/_processed_/a/9/csm_jrt_series_af28d_840x580_3d51b28dd5.jpg)
- High gripping forces by the structure of synchronized dual piston
- Body & parts made of aluminium alloy-Compact & Light weight gripper
- A dust cover to prevent coarse particle
- Magnetic sensor is available for open-close sensing
AF30 SERIES
![JRT series AF30 parallel gripper JRT series AF30 parallel gripper (image 840x580px)](/fileadmin/_processed_/e/6/csm_jrt_series_af30_840x580_c0434cb58f.jpg)
- Compact structure by wedge guide driving unit
- Location pin hole at an each mounting side
- Possible to use without the supply tube when you use back side support port(BP option)
- Proximity sensor is available for open-close sensing
AF30DP SERIES
![jrt series af30dp 840x580](/fileadmin/_processed_/3/b/csm_jrt_series_af30dp_840x580_f3566c23f6.jpg)
- Reduction of internal wear and tear and friction with special coating of the jaw
- It's easy to determine the location of attachments with the fixed fin on the jaw
- With the scraper seal, infiltration of foreign materials is prevented
- Miniscule materials that infiltrate into the product could be discharged using the air outlet port
- With the attachment of the linear guide, preventing the rotation of the jaw is possible
AF101 SERIES
![jrt series af101 840x580](/fileadmin/_processed_/5/6/csm_jrt_series_af101_840x580_b389fc8219.jpg)
- Rack & pinion type
- High gripping forces by the structure of synchronized dual piston
- Magnetic sensor is available for open-close sensing
- AF101-10 is old model (sensor is not available)

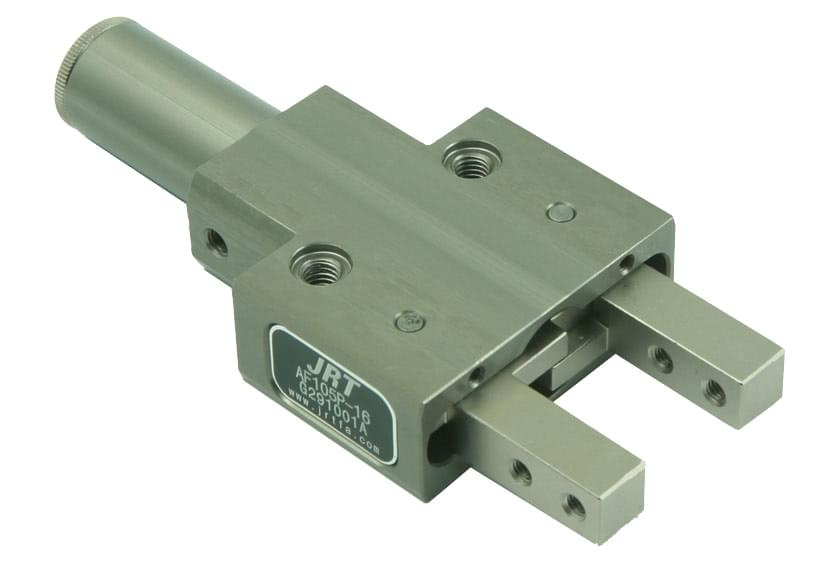

AF105P SERIES
![jrt series af105p 840x580](/fileadmin/_processed_/c/3/csm_jrt_series_af105p_840x580_d26baf23e8.jpg)
- Back pressure sensor is available only
- Small size but strong grip force
- Taper sliding & roller guide type
- Easy to mount many grippers (compact body)
AF316 SERIES
![jrt series af316 840x580](/fileadmin/_processed_/2/f/csm_jrt_series_af316_840x580_efb500944f.jpg)
- Cross roller guide type
- High repeatability & long life by jaw united cross roller
- Magnetic sensor is available for open-close sensing
- Suitable to grip a small and light work piece
- Twisted it is strong hardness plunger
- For precise positioning of individual gripping jaw
