Linear slide cylinders (CKD)

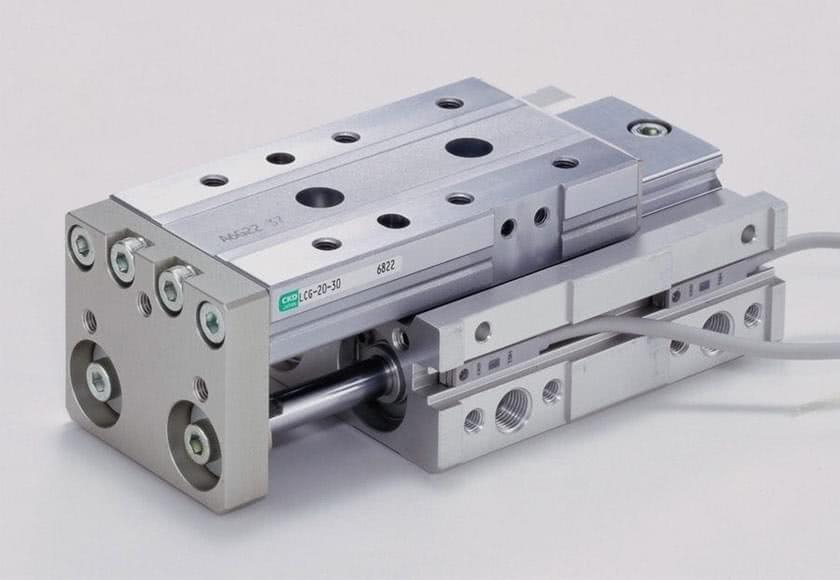

LCG Series
![](/fileadmin/_processed_/a/8/csm_LCG_6136dc6d4e.png)
The air cylinder’s wide guide improves accuracy and rigidity .The linear guide table acts as the sliding table to provide outstanding accuracy, rigidity, and easy of use.
- Improved accuracy
- Easier to use
- Higher rigidity
- Increased design freedom
- Linear guide with four guide ball rows (excluding 6 and 8)
- Ample option variations
- 2-color switch selectable
- RoHS Directive-compliant
LCR Series
![CKD series LCR guided cylinder CKD series LCR guided cylinder (image 840x580px)](/fileadmin/_processed_/2/f/csm_ckd_series_lcr_840x580_c3e63ce262.jpg)
Contributes to downsizing, shorter tact time and saving energy by reducing the weight of moving parts. Increased rigidity from conventional model (LCS) with strengthened slide table and linear guide.
LCM Series
![](/fileadmin/_processed_/7/d/csm_PR_CKD_SerieLCM_bdd63cddc5.png)
Highly compact, accurate, and rigid LCM series linear slide (φ4.5/ φ6/ φ8).
- Ideal for highly accurate positioning
- Highly accurate 0.005mm sliding parallelism and 0.3mm installation parallelism are ensured, making this actuator ideal for positioning.
- Ultimate pursuit of downsizing
The cylinder, linear guide, and slide table have been integrated into a highly compact unit.
