Optical sensors (CAPTRON)
OGL Series

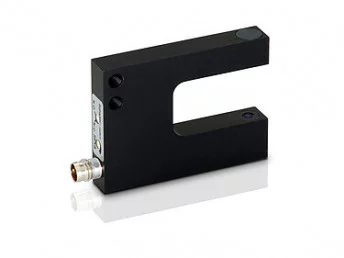

CAPTRON fork light barries of the OGL series with laser technology are extremely precise in terms of accuracy - even with small parts of only 0.05 mm. Transmitter and receiver are located in a robust metal housing and are already adjusted. This saves time during commissioning, reduces installation work and ensures a reliable process.
A very high switching frequency of 10 kHz enables extremely precise and dependable detection of both metallic and non-metallic objects. The output contacts between the N/C and N/O contacts of the laser fork light barriers can be switched. The sensitivity can be adjusted using an adjustment screw.
LASER LIGHT BARRIERS WITH INTEGRATED AIR SYSTEM
CAPTRON laser light barriers with integrated air system are extremely resistant to dirt. Outflowing air prevents dust and dirt from collecting on the transmitter and receiver.
This makes the system ideal for industrial applications with high levels of contamination, such as the food industry, paper industry, mixing and metering systems, and many others.
- Fork light barriers: laser technology
- Reliable object detection: metallic and non-metallic objects
- Fork widths: 20 to 220 mm
- High switching frequency: max. 10 kHz
- High resolution: of 0.05 mm
- Settings: light/dark switching and sensitivity
- Robust metal housing: degree of protection IP65
- High reproducibility: of 0.01 mm
- Optional equipment: with integrated air system (fork widths from 50 to 120 mm)
- Special designs: possible upon customer request
